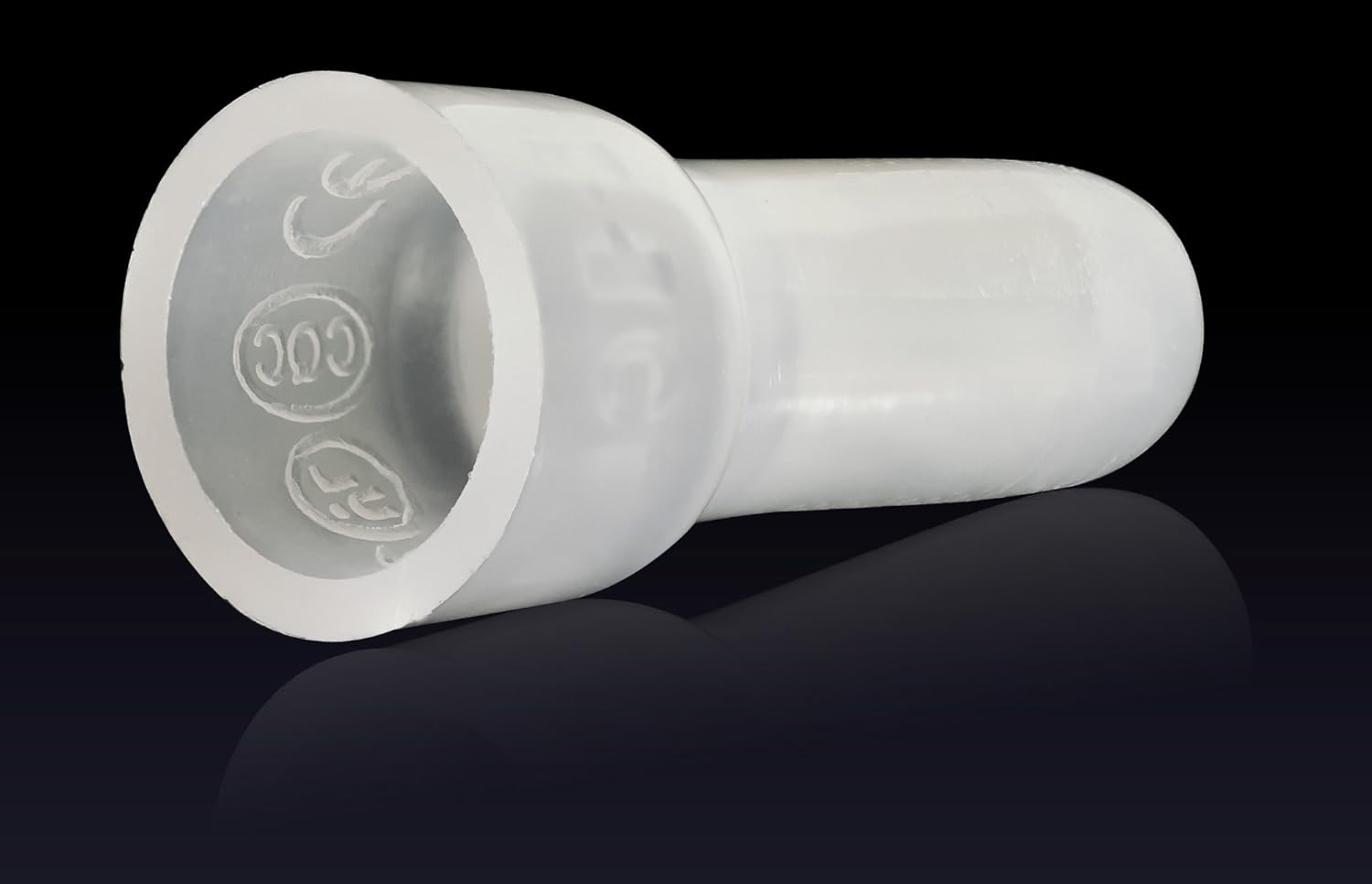

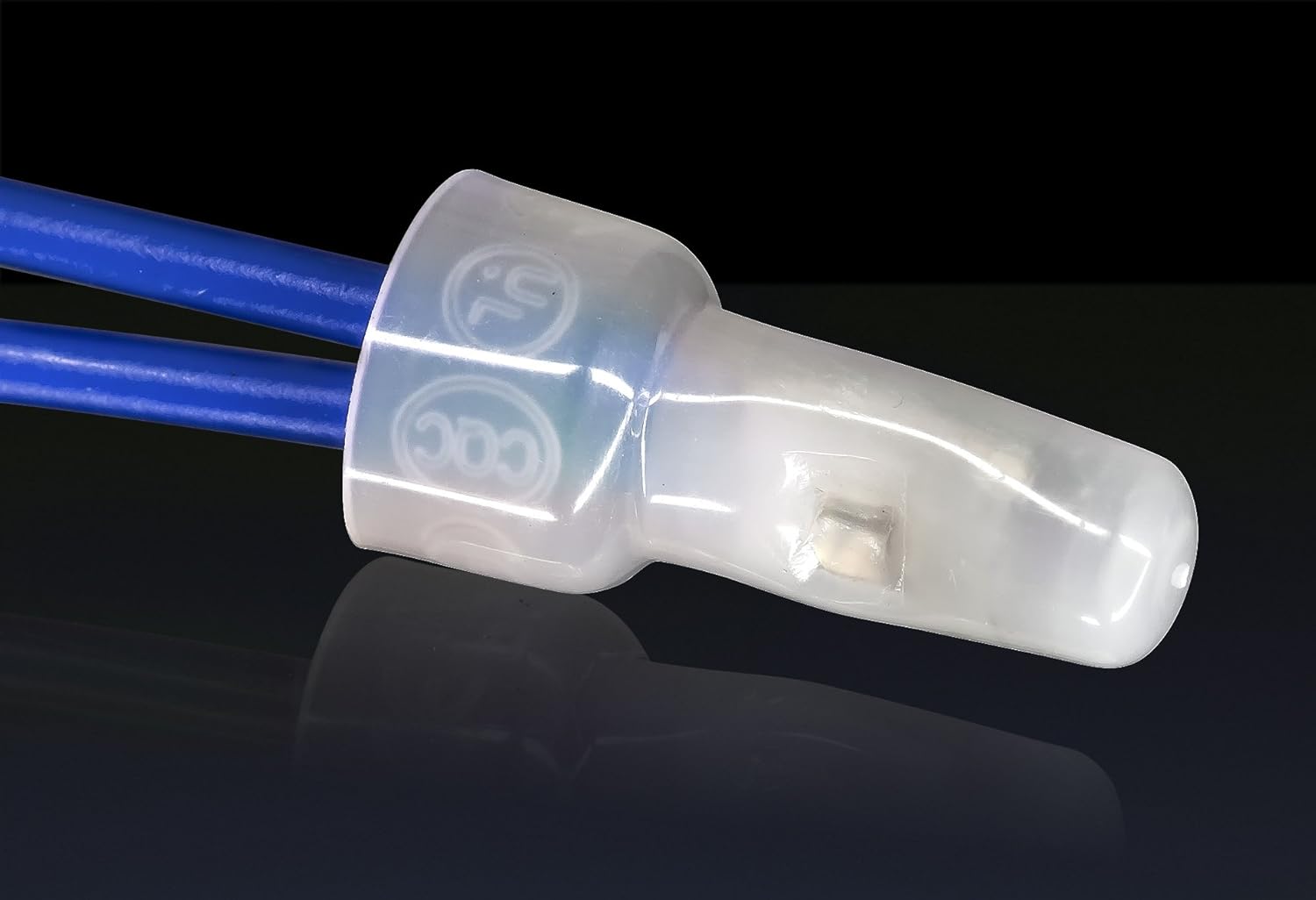

Closed End Crimp Cap, Nylon Wire Connector, Aluminum Tube, CE1, 22-18 Gauge - UL Listed - Bulk Pack of 1,000

CLOSED END CRIMP CAPS Are the Industry Standard for Automotive Audio and Power Cable Connectors The Quickest and Easiest Crimping Wire Connection Terminal, UL Listed, CQC Certified Packaged bag of 1,000 pcs. Wire combinations: No. 22 thru 18 AWG PRODUCT FEATURES: Clear Nylon Crimp Cap with Internal Aluminum Tube No Pre-Twisting of Conductor is Required Temperature Rated at 221°F (105°C) maximum Fits 22-18 AWG Wire Range: 0.5-1.75mm² Tough, UL 94V-2 Flame Retardant Nylon Shell Polyamide 66 will not crack or break, even when applied to maximum wire combinations under extreme pressure VOLTAGE RATING: 300V Max. UL Listed, CQC Certified Overall Dimensions: 0.71'' H x 0.31'' D This closed end connectors with internal aluminum tube to ensure perfect connections between wires. Just strip of the wire and insert securely inside the connector crimp by crimping tool. INSTALLATION INSTRUCTIONS:   1. Turn off power before installing or removing connectors.   2. Use stranded copper conductors only when utilize tools AK-25 or MR30A. May use solid or stranded copper conductors when utilize tools #7A or AC-5ND.   3. Strip wires 0.51 in. (13mm). Max., 0.47 in. (12mm) Min.   4. Twist wires together along the entire length of strip and insert them into connector.   5. Center the crimp tool die around the sleeve.   6. Crimp once using the Lobster AK-25, Die No. 1, or the Muromoto Tekko MR30A, Die No. 1.25, Air Pressure 6 kg/cm2 at least. AMAZON Protected Money-Back Satisfaction Guaranteed

• HIGH QUALITY Nylon Crimp Cap with Aluminum Ferrule Terminals Connector
• Translucent Tubing Allows for Visual Inspection of Inserted Wiring
• Connects Wires of 22 through 18 gauge
• UL 94V-2 Flame Retardant Nylon Shell Polyamide 66 will not crack or break, even when applied to maximum wire combinations under extreme pressure
• UL Listed, CQC Certified
